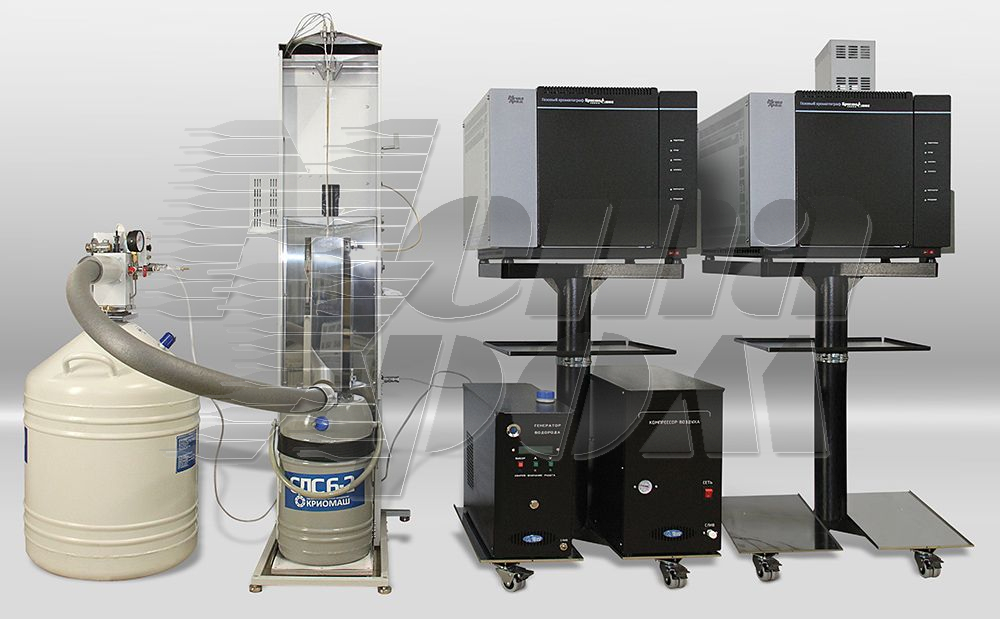

Cryoconcentration unit CCU-6

Application

Cryoconcentration unit CCU-6 (hereinafter referred to as CCU-6) is an integral part of an automated chromatographic complex based on a Crystallux -4000M gas chromatograph and is intended for quality control of helium 99,9999 and hydrogen 99,9999 for trace amounts of Ne, CH4, O2+Ar, N2, CO, CO2 и H2.CCU-6 concentrates gaseous impurities (Ne, H2, O2+Ar, CH4, CO и СО2) in helium and hydrogen in sorption columns at the temperature of liquid nitrogen, which are afterwards focused and desorbed and introduced into GC (equipped with FID-TCD and TCD- CCD detectors) to determine their qualitative and quantitative composition.

Specifications Value
Test gas helium, hydrogen
The temperature of the sorption columns during adsorption,0С -196
Maximum thermal desorption temperature,0С 400
Pressure of the analyzed gas, no more than MPa 0,4
Inlet gas pressure, not more than MPa 1,0
Total analysis time, no more than minutes 17
The volume of the vessel with liquid nitrogen, l 6
Automatic refill of liquid nitrogen before each concentration cycle -
Power supply 230-240В, 50-60Hz
Input power no more than, kW0С 2000
Overall dimensions, mm 510х600х1550
Weight, no more than kg 30

This installation is an improved typ, it is made for the determination of trace elements not only in helium, but also in hydrogen.

In UKK-6, liquid nitrogen is added automatically, which minimizes the dangers of contact with such a dangerous substance.

The detection limits of the installation are shown in tables 1 and 2.

Table 1 Detection limits for helium analysis.

Name Value
% vol. He , %, no less 99,9999
% vol. O2+Ar, %, no less0С 0,000015
% vol Ne, %, no less 0,000015
% vol N, %, no less 0,000045
% vol CO2, %, no less 0,00001
% vol CH4, %, no less 0,000005
% vol CO, %, no less 0,000005
% vol H2, %, no less 0,000005

Table 2 Detection limits for hydrogen analysis

Name Value
% vol H2, %, no less 99,9999
% vol O2+Ar, %, no less 0,000015
% vol N, %, no less 0,00006
% vol CH4, %, no less 0,00001
% vol CO + CO2, %, no less 0,000015

The technical characteristics of the purchased units used are given in the technical documentation for these units supplied with the unit.
