Application

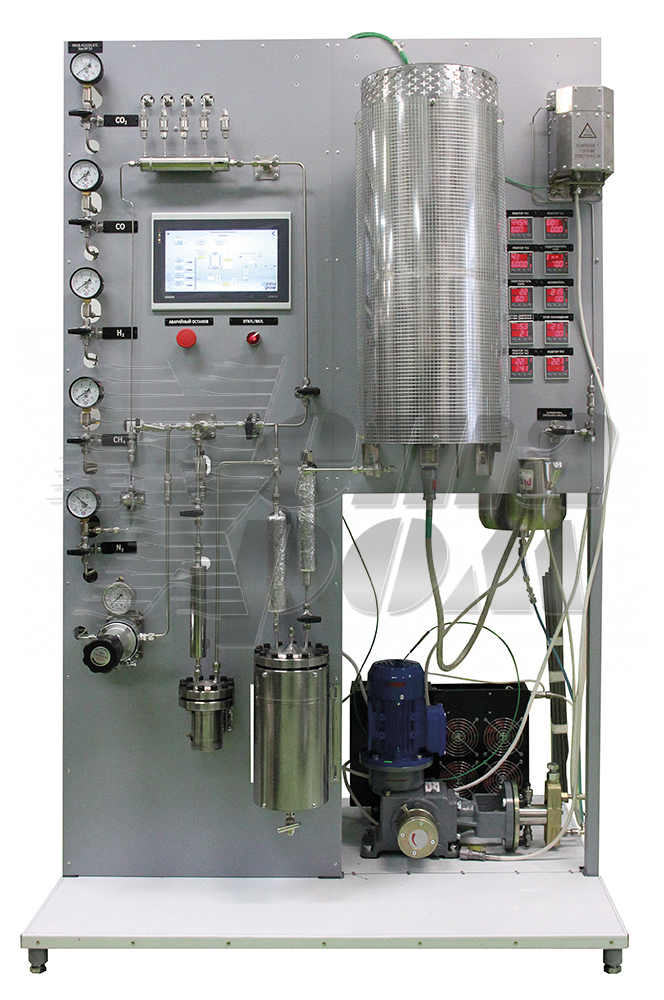

The laboratory catalytic unit LCU-1 is designed to carry out heterogeneous catalytic processes, which makes it possible to conduct educational and scientific research on the processes of catalytic processing of natural gas (steam reforming).
Terms of Use:
· ambient temperature from +10 to +35 0 C;
· relative air humidity no more than 80% at a temperature of 25 0 C;
Technical characteristics
|
Specifications |
Value |
|
Operating pressure range, MPa |
0÷6 |
|
Operating temperature range of the reactor, °C |
20÷950 |
|
Inner diameter of the reactor, mm |
22 |
|
Internal length of reactor, mm |
740 |
|
Thermocouple pocket with a filter attached to it |
included |
|
Length of isothermal zone, mm |
300 |
|
Furnace type |
tubular |
|
Number of thermostatically controlled independent zones |
3 |
|
Temperature setting resolution, °C |
1 |
|
CO2 flow rate range, ml/min |
0÷1000 |
|
H2, C2H4 flow rate range, ml/min |
0÷1000 |
|
CH4 flow rate range, ml/min |
0÷1600 |
|
CO flow rate range, ml/min |
0÷1000 |
|
N2 Supply line |
included |
|
Discreteness of temperatures and flow rates displayed on the screen |
0,1 |
|
Mechanical safety valves operating pressure, MPa |
6,5 |
|
Power supply V (Hz) |
380±20 (50) |
|
Power consumption, kW |
9 |
|
Weight, kg |
300 |
|
Overall dimensions (WxDxH), mm |
1100x810x1820 |
Scheme
