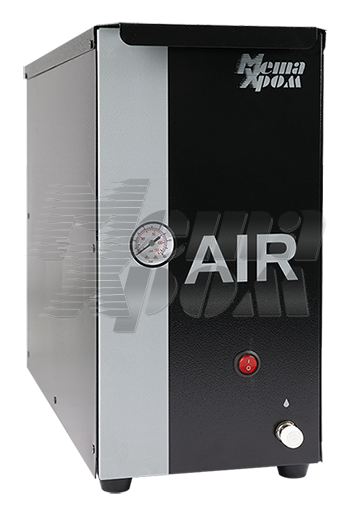

Photo: Air compressors “Meta-chrom”;
Compressor “AC” consists of series-connected air compressor, drying air filter, indicator tube, reverse valve (pneumatic air distributor), receiver, pressure relay, pressure regulator and output filter.
Compressor is easy to operate.
|Name of characteristics||Value|
|Productivity, no less, l/min||3|
|Outlet air pressure, МPа||0,25+5%|
|Pressure stability with constant flow, no more, МPа||0,0007|
|Engine power consumption, no more, VА||100|
|Receiver volume, l||9|
|Noise level, no more, dB||60|
|Mass, no more, kg||19|
|Overall dimensions (width×depth×height), no more, mm 235×755×440||235×755×440|
|Single-phase network voltage||220 В, 50 Hz|
