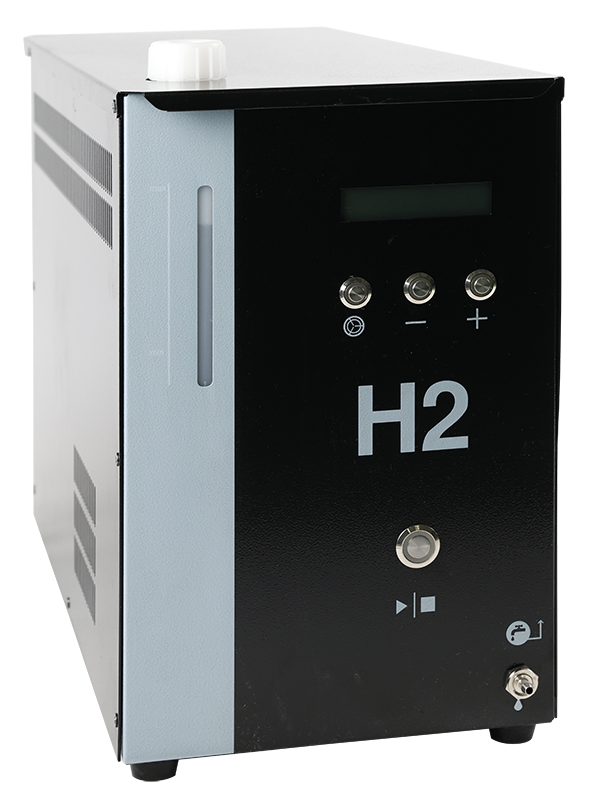

The Molecular Hydrogen Generator (MHG) is a device for producing high-purity hydrogen by PEM electrolysis. The instrument is designed to deliver gas through a nasal cannula and can also be used to prepare hydrogen water.
Price
Price on request
· Delivery available across the Russian Federation and the CIS.
Advantages of the MHG:
· Highest purity: Hydrogen purity at the outlet is at least 99.995% by volume.
· Safety: Automatic shutdown when pressure is exceeded or a fault is detected.
· Ease of use: No internal cleaning of the device by the user is required. Only distilled water is used for operation.
· Versatility: The ability to deliver gas through a nasal cannula, as well as to prepare hydrogen water using an aerator.
· Quality control: A built-in water quality sensor prevents operation with contaminated liquid.
Key features:
· PEM electrolysis: A modern method for producing high-purity hydrogen.
· Automatic protection: Generation stops when the cannula is blocked (pressure 0.25 bar).
· Intuitive interface: The LCD display shows operating modes and technical messages (e.g., "Add water," "Dirty water," "Replace filter").
· Package contents: Includes a 30-minute hourglass, nasal cannulas, and a tube with an aerator for preparing hydrogen water.
The MHG Molecular Hydrogen Generator for Inhalation is your reliable assistant for procedures using molecular hydrogen.
Technical Specifications
|
Parameter |
Value |
|
Model |
MHG |
|
Hydrogen production method |
PEM electrolysis |
|
Hydrogen purity at outlet |
not less than 99.995% |
|
Gas delivery type |
through a nasal cannula |
|
Working fluid |
distilled water |
|
Internal cleaning of the device by the user |
not required |
|
Automatic shutdown |
when pressure is exceeded or a fault is detected |
|
Power consumption |
200 W |
|
Water tank volume, l |
1.0 |
|
Volume of water added to the tank when the "Add water" alarm triggers, not more than, l |
0.5 |
|
Diagnostics and operation monitoring |
water level; hydrogen pressure and flow; electrolyser current; hydrogen humidity; water quality control |
|
Number of users |
1 (2 – on request) |
|
Safety devices |
pressure limit relay; water and hydrogen leak monitoring |
|
Overall dimensions, not more than (width x length x height), mm |
210 x 550 x 420 |
|
Generator weight, not more than, kg |
14 |
Package Contents
· MHG Molecular Hydrogen Generator
· Nasal cannulas
· Tube with aerator for preparing hydrogen water
· Hourglass (30 minutes)
· Operating manual
Operating Conditions
· Room: Well-ventilated only.
· Surface: Level and stable.
· Prohibited: Placing near open flames, sparks, or heating appliances. Using in an enclosed space (car, cabinet).
· Health restrictions: Before use, be sure to consult a doctor if you are pregnant, breastfeeding, have severe heart or lung conditions, oncological diseases, nosebleeds, etc.
Safety
· Hydrogen is an extremely flammable gas. Use only in a well-ventilated room.
· During operation, smoking, open flames, candles, and lighters are strictly prohibited.
· If you smell burning, hear unusual noise, or notice the housing heating up, immediately stop the device and disconnect it from the mains.
· Immediately stop the procedure if you experience dizziness, confusion, chest pain, nausea, nosebleed, or any deterioration in how you feel.
