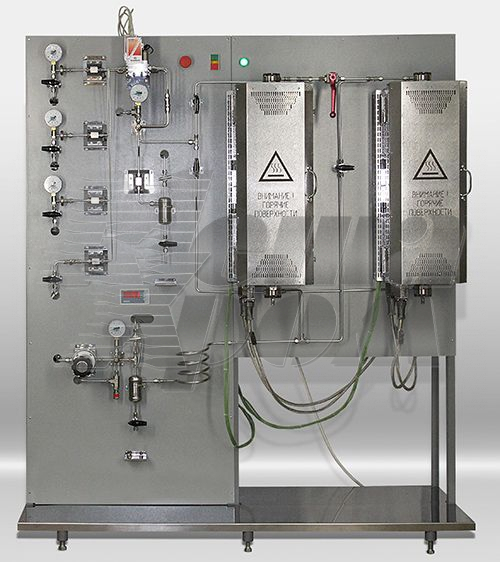

Bench laboratory reactor
Bench laboratory reactor tester of adsorption properties of silica gels, protective layers and selective hydrogenation catalyst
Purpose
Stand laboratory unit for testing the adsorption properties of silica gels, protective layers and selective hydrogenation catalysts.
Specifications
The unit is a rack with the unit assemblies fixed on it. The installation for electrical safety meets the requirements of class 1, type H in accordance with GOST 12.2.025-76.
Operating conditions:
- Ambient temperature from +10 до +35˚С;
- Relative air humidity not more than 80% at temperature 25˚С;.
- Power supply - three- or single-phase AC voltage 220 V±10% and frequency of 50 Hz.; air 0,4 — 0,8 MPa.
- Average service life of the unit 5 years.
| Technical characteristics of the hydrotreating and hydrogenation unit | Value |
| Working pressure range, MPa | 0÷6 |
| Reactor operating temperature range, 0С | 20÷600 |
| Internal diameter of the reactor, mm | 20 |
| Internal length of the reactor, mm | 690 |
| A thermocouple pocket with a movable filter and a support mesh fixed on it for adjusting the volume of the tested catalyst | Available |
| Isothermal zone length, mm | 300 |
| Oven type | Winged |
| Number of thermostated independent zones | 4 |
| Power consumed by each of the four independent thermostatic zones, W | ≤ 400 |
| Discreteness of setting the temperature, 0С | 0,1 |
| Flow range С2 Н4, l / min | 0,02÷1,7 |
| Flow range С3 Н6, l / min | 0,02÷1,7 |
| Flow range Н2, l / min | 0÷0,02 |
| Flow range N2, ml / min | 0,02÷1,7 |
| Opening pressure of mechanical safety valves, MPa | 6,8 |
| Supply voltage | 220В 50Hz |
| Power consumption, no more, kW | 5 |
| Discreteness of temperatures and costs displayed on displays | 0,01 |
| Unit weight, kg | 230 |
| Overall dimensions of the unit, mm | 1680х1480х580 |
| Length of supply pipelines, m | 20 |
The technical characteristics of the purchased units used in the installation are given in the technical documentation for these units supplied with the unit.
